SCPI for the Arbitrary Waveform Generator

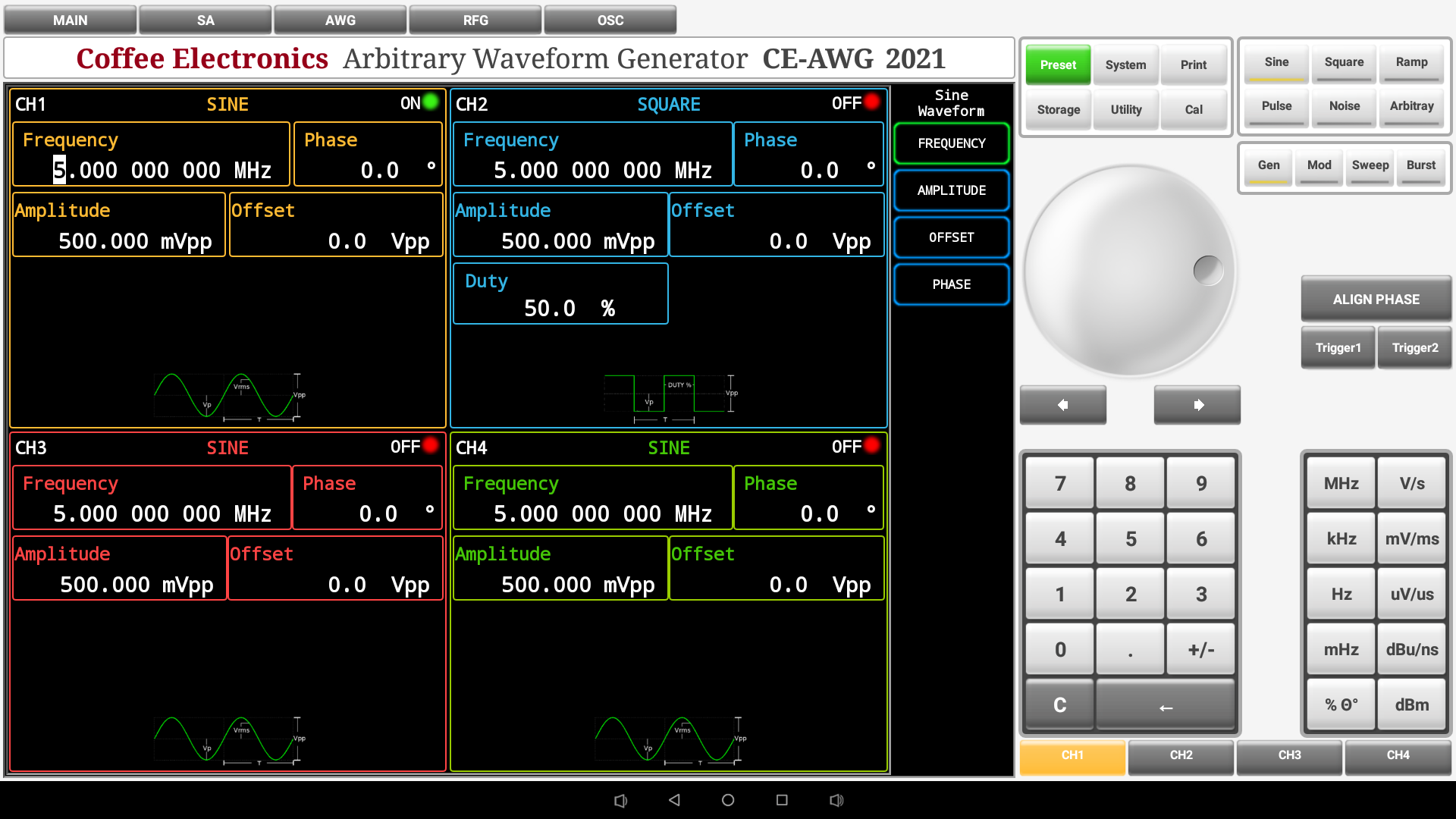

The eLABin1 four-channel Arbitrary Waveform Generator (AWG) can be remotely controlled by SCPI commands. Below are the SCPI commands for each of the subsystems of the AGW listed in tables. |
 |
Communication with the device
| Command | Description | ||
|---|---|---|---|
AWG |
Switches to the AWG from the main screen or from another instrument | ||
Common commands
The following Common Commands apply to the entire configuration of the Arbitrary Waveform generator only when the Arbitrary Waveform generator is the instrument in foreground. As Common Commands are based in the current context, they apply to the current instrument, when the current view is the main screen. Commands apply for the entire configuration of the eLABin1.
| Command | Description | ||
|---|---|---|---|
AWG:*IDN? |
Returns the SCPI identification string of the Arbitrary Waveform Generator. | ||
AWG:*RST |
Resets the Arbitrary Waveform Generator | ||
AWG:*SAV {A|B|C|D} |
Saves the Arbitrary Waveform Generator state on the selected memory slot. | ||
AWG:*WAI |
The Wait-to-Continue (WAI) command causes the waveform generator to wait until all pending commands are completed, before executing any other commands. | ||
Basic waveform commands
| Command | Example 1 | Example 2 | Description |
|---|---|---|---|
AWG:Channel{1|2|3|4}:OUTPut {ON|OFF} |
AWG:C1:OUTP ON |
AWG:C4:OUTP OFF |
Turns on/off the ouput in the specified channel. |
AWG:Channel{1|2|3|4}:WaVeForM {SINE|SQUARE|PULSE|RAMP} |
AWG:C2:WVFM SINE |
AWG:C2:WVFM RAMP |
Sets the waveform in the specified channel. |
AWG:Channel{1|2|3|4}:FREQuency <number>{Hz|KHz|MHz|GHz} |
AWG:C2:FREQ 1MHZ |
AWG:C2:FREQ 10KHZ |
Sets the waveform frequency in the specified channel, if wavetype is noise, you can not set this parameter |
AWG:Channel{1|2|3|4}:AMPlitude <number>{V|mV|uV} |
AWG:C4:AMP 1V |
AWG:C2:AMP 0.5V |
Sets the waveform Amplitude in the specified channel. |
AWG:Channel{1|2|3|4}:OFFSet <number>{V|mV|uV} |
AWG:C2:OFFS .3V |
AWG:C3:OFFS 200mV |
Sets the waveform Offset in the specified channel. |
AWG:Channel{1|2|3|4}:PHaSE <number>{DEG} |
AWG:C3:PHSE 20DEG |
AWG:C2:PHSE 15DEG |
Sets the waveform Phase in the specified channel, if wavetype is noise, you can not set this parameter. |
AWG:Channel{1|2|3|4}:DUTY <number>{%} |
AWG:C2:DUTY 30 |
AWG:C1:DUTY 20 |
Sets the waveform Duty in the specified channel, only square waveform can set this parameter. |
AWG:Channel{1|2|3|4}:PulseWIDth <number>{s|ms|us|ns} |
AWG:C1:PWID 200mS |
AWG:C2:PWID 500mS |
Sets the pulse width in the specified channel, only pulse waveform can set this parameter. |
AWG:Channel{1|2|3|4}:EDGE <number>{s|ms|us|ns} |
AWG:C4:EDGE 20mS |
AWG:C1:EDGE 100mS |
Sets the edge time in the specified channel, only pulse waveform can set this parameter. |
AWG:Channel{1|2|3|4}:SYMmetry <number>{%} |
AWG:C3:SYM 40 |
AWG:C1:SYM 20 |
Sets the symmetry in the specified channel, only ramp waveform can set this parameter. |
Modulate Wave commands
| Command | Example 1 | Example 2 | Description |
|---|---|---|---|
AWG:Channel{1|2|3|4}:MoDulateWaVe {ON|OFF} |
AWG:C2:MDWV ON |
AWG:C3:MDWV OFF |
Turns on/off the modulate wave mode. |
AWG:Channel{1|2|3|4}:MoDulateWaVe {AM|FM|PM|PWM} |
AWG:C4:MDWV AM |
AWG:C1:MDWV FM |
Sets the modulation type in the specified channel. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:AM:SouRCe {INT|EXT} |
AWG:C1:MDWV:AM:SRC INT |
AWG:C2:MDWV:AM:SRC EXT |
Sets the AM modulation source. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:AM:MDSP {SINE|SQUARE} |
AWG:C2:MDWV:AM:MDSP SINE |
AWG:C3:MDWV:AM:MDSP SQUARE |
AM modulation wave. Only AM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:AM:FREQuency
<number>{Hz|KHz|MHz|GHz} |
AWG:C1:MDWV:AM:FREQ 20kHZ |
AWG:C1:MDWV:AM:FREQ 1MHZ |
AM frequency. Only AM signal source is set to INT. |
AWG:Channel{1|2|3|4}: MoDulateWaVe:FM:SouRCe {INT|EXT} |
AWG:C4:MDWV:FM:SRC INT |
AWG:C4:MDWV:FM:SRC EXT |
Sets the FM modulation source. |
AWG:Channel{1|2|3|4}: MoDulateWaVe:FM:MDSP {SQUARE|RAMP} |
AWG:C2:MDWV:FM:MDSP SQUARE |
AWG:C2:MDWV:FM:MDSP RAMP |
FM modulation wave. Only FM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:FM:FREQuency
<number>{Hz|KHz|MHz|GHz} |
AWG:C3:MDWV:FM:FREQ 1kHZ |
AWG:C3:MDWV:AM:FREQ 20HZ |
FM frequency. Only FM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:FM:FRequencyDEViation
<number>{Hz|KHz|MHz|GHz} |
AWG:C2:MDWV:FM:FRDEV 100kHZ |
AWG:C2:MDWV:FM:FRDEV 500HZ |
FM frequency deviation. Only FM signal source is set to INT. |
AWG:Channel{1|2|3|4}: MoDulateWaVe:PM:SouRCe {INT|EXT} |
AWG:C3:MDWV:PM:SRC INT |
AWG:C1:MDWV:PM:SRC EXT |
Sets the PM modulation source. |
AWG:Channel{1|2|3|4}: MoDulateWaVe:PM:MDSP {RAMP|PULSE} |
AWG:C2:MDWV:PM:MDSP RAMP |
AWG:C2:MDWV:PM:MDSP PULSE |
PM modulation wave. Only PM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:PM:FREQuency
<number>{Hz|KHz|MHz|GHz} |
AWG:C1:MDWV:PM:FREQ 100HZ |
AWG:C1:MDWV:PM:FREQ 2KHZ |
PM frequency. Only PM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:PM:AMPLitude <number>{V|mV|uV} |
AWG:C3:MDWV:PM:AMP 100mV |
AWG:C3:MDWV:PM:AMP 300mV |
PM Amplitude. Only PM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:PM:OFFSet <number>{V|mV|uV} |
AWG:C3:MDWV:PM:OFFS 200mV |
AWG:C2:MDWV:PM:OFFS 100mV |
PM Offset. Only PM signal source is set to INT. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:PM:PHaSE <number>{DEG} |
AWG:C1:MDWV:PM:PHSE 20DEG |
AWG:C3:MDWV:PM:PHSE 40DEG |
PM phase. Only PM signal source is set to INT. |
AWG:Channel{1|2|3|4}: MoDulateWaVe:PWM:SouRCe {INT|EXT} |
AWG:C1:MDWV:PWM:SRC INT |
AWG:C1:MDWV:PWM:SRC EXT |
Sets the PWM modulation source |
AWG:Channel{1|2|3|4}: MoDulateWaVe:PWM:MDSP {PULSE|RAMP} |
AWG:C4:MDWV:PWM:MDSP PULSE |
AWG:C4:MDWV:PM:MDSP RAMP |
PWM modulation wave. Only carry wave is PULSE wave. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:PWM:FREQuency
<number>{Hz|KHz|MHz|GHz} |
AWG:C1:MDWV:PWM:FREQ 10HZ |
AWG:C1:MDWV:PWM:FREQ 12KHZ |
PWM frequency. Only carry wave is PULSE wave. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:CARRier:WaVeTyPe {RAMP|SINE} |
AWG:C2:MDWV:CARR:WVTP RAMP |
AWG:C2:MDWV:CARR:WVTP SINE |
Sets the carrier wavetype. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:CARRier:FREQuency
<number>{Hz|KHz|MHz|GHz} |
AWG:C2:MDWV:CARR:FREQ 20HZ |
AWG:C2:MDWV:CARR:FREQ 2KHZ |
Sets the carrier frequency value. |
AWG:Channel{1|2|3|4}:MoDulateWaVe:CARRier:AMP <number>{V|mV|uV} |
AWG:C3:MDWV:CARR:AMP 200mV |
AWG:C3:MDWV:CARR:AMP 500mV |
Sets the carrier amplitude value. |
Sweep Wave commands
| Command | Example 1 | Example 2 | Description |
|---|---|---|---|
AWG:Channel{1|2|3|4}:SWEep {ON|OFF} |
AWG:C3:SWE ON |
AWG:C1:SWE OFF |
Turns on/off the sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:STARt <number>{Hz|KHz|MHz|GHz} |
AWG:C4:SWE:STAR 200HZ |
AWG:C4:SWE:STAR 2KHZ |
Sets the start frequency in sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:STOP <number>{Hz|KHz|MHz|GHz} |
AWG:C2:SWE:STOP 1KHZ |
AWG:C1:SWE:STOP 340HZ |
Sets the stop frequency in sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:SPAN <number>{Hz|KHz|MHz|GHz} |
AWG:C1:SWE:SPAN 500KHZ |
AWG:C1:SWE:SPAN 200HZ |
Sets the span frequency in sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:CENTer <number>{Hz|KHz|MHz|GHz} |
AWG:C3:SWE:CENT 1MHZ |
AWG:C3:SWE:SPAN 600HZ |
Sets the center frequency in sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:TIME <number>{s|ms|us|ns} |
AWG:C1:SWE:TIME 200mS |
AWG:C1:SWE:TIME 100mS |
Sets the sweep time . |
AWG:Channel{1|2|3|4}:SWEep:POINt <number>{PTS} |
AWG:C2:SWE:POIN 20 |
AWG:C2:SWE:POIN 40 |
Sets the total frequency points in sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:DWELl <number>{s|ms|us|ns} |
AWG:C4:SWE:DWEL 0.3S |
AWG:C4:SWE:DWELl 0.5S |
Sets the Dwell time in sweep mode. |
AWG:Channel{1|2|3|4}:SWEep:SPACing {LIN|LOG} |
AWG:C1:SWE:SPAC LIN |
AWG:C1:SWE:SPAC LOG |
Sets the spacing between frequency points (linear or logaritmic) |
AWG:Channel{1|2|3|4}:SWEep:TRIGger:SOURce{SING|AUTO} |
AWG:C3:SWE:TRIG:SOUR SING |
AWG:C3:SWE:TRIG:SOUR AUTO |
Sets the frequency sweep mode (single or periodic). |
Burst Wave commands
| Command | Example 1 | Example 2 | Description |
|---|---|---|---|
AWG:Channel{1|2|3|4}:BURST {ON|OFF} |
AWG:C3:BURST ON |
AWG:C4:BURST OFF |
Turns on/off the burst mode. |
AWG:Channel{1|2|3|4}:BURST:PeRioD <number>{s|ms|us|ns} |
AWG:C2:BURST:PRD 0.2S |
AWG:C2:BURST:PRD 500mS |
Sets the burst period. |
AWG:Channel{1|2|3|4}:BURST:STartPhaSe <number>{DEG} |
AWG:C4:BURST:STPS 20DEG |
AWG:C4:BURST:STPS 30DEG |
Sets the burst phase. |
Other Control Commands
| Command | Example 1 | Example 2 | Description |
|---|---|---|---|
AWG:LOAD:STATe {A|B|C|D} |
AWG:LOAD:STAT A |
AWG:LOAD:STAT C |
Loads the storaged data on the specified memory state. |
AWG Query Commands
| Command | Example | Return | Description |
|---|---|---|---|
AWG:Channel{1|2|3|4}:WaVeForM? |
AWG:C2:WVFM? |
AWG:C2 WVFM SINE; FREQ 200KHZ; AMP 200mV; OFFS 0mV; PHSE 30 DEG |
Asks for the waveform parameters configured on the specified channel (Waveform, frequency, amplitude, etc). |
AWG:Channel{1|2|3|4}:MoDulateWaVe? |
AWG:C1:MDWV? |
AWG:C1:MDWV FM FREQ 20KHZ; SRC INT; MDSP SQUARE; FRDEV 1KHZ |
Asks for the modulated waveform parameters configured on the specified channel. |
AWG:Channel{1|2|3|4}:SWEeep? |
AWG:C2:SWE? |
AWG:C2:SWE ON; STAR 200HZ; STOP 1KHZ; SPAN 500KHZ; CENT 1MHZ: TIME 200mS; POIN 20;
DWEL 0.3S; SPAC LIN; SOUR SING |
Asks for the information configured in the sweep wave mode. |
AWG:Channel{1|2|3|4}:BURST? |
AWG:C2:BURST? |
AWG:C2:BURST ON; PRD 0.2S; STPS 20DEG |
Asks for the information configured in the burst wave mode. |
Preset Values
| Variable | Preset Value | |||
|---|---|---|---|---|
| Channel 1 | Channel 2 | Channel 3 | Channel 4 | |
| Channel State | ON | ON | ON | ON |
| Waveform | SINE | SQUARE | SINE | SINE |
| Frequency | 5MHz | 5MHz | 5MHz | 5MHz |
| Amplitude | 500mV | 500mV | 500mV | 500mV |
| Phase | 0° | 0° | 0° | 0° |
| Offset | 0 V | 0 V | 0 V | 0 V |
| Duty | 50% | 50% | 50% | 50% |
| Symmetry | 50% | 50% | 50% | 50% |
| Pulse Width | 5µS | 5µS | 5µS | 5µS |
| Edge Time | 1µS | 1µS | 1µS | 1µS |
